When purchasing a sand filter for above-ground or in-ground swimming pools and fish ponds, it is crucial to regularly clean and maintain the filter to ensure optimal performance. Periodically checking the condition of the filtering medium, such as sand, is important for identifying any blockages or degradation that may affect filtration efficiency. By conducting routine inspections and cleaning of the sand filter, you can prolong its lifespan and maintain clean and clear water for your pool or pond.

Features:

• Our 16 inch Sand filter is compatible with 0.35 to 1HP pumps(Not Included), above-ground or in-ground pools and ponds, spa hot tubs.

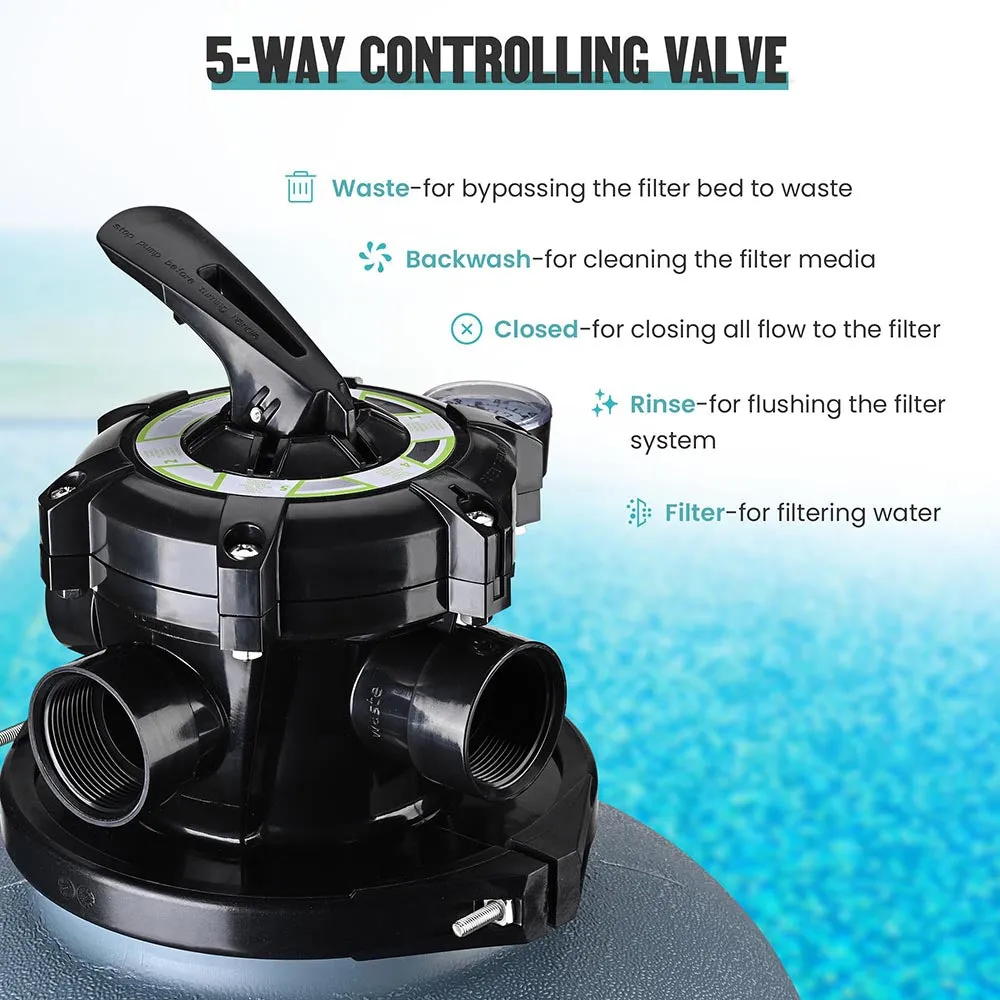

• 5-Way controlling valve:
  • Filter - for filtering water
  • Backwash - for cleaning the filter media
  • Rinse - for flushing the filter system
  • Waste - for bypassing the filter bed to waste
  • Closed- for closing all flow to the filter
• Sand filter separates suspended substance from the water, can be used on swimming pool and fish pond
• 7-Way controlling valve features 7 functions for filtering, backwashing, draining & circulating

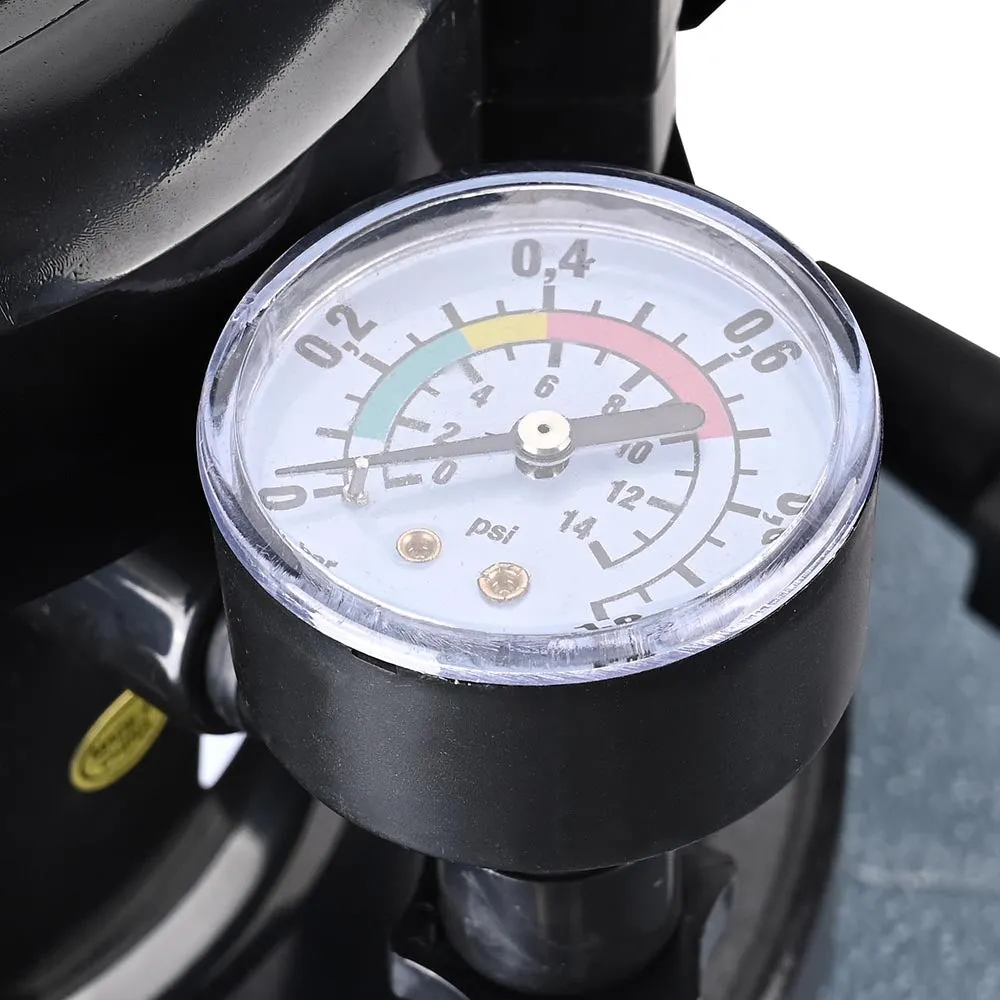

• Filter with high flow rate upto 35.2 GPM and max. working pressure up to 22 PSI for fast flowing and reducing filtering time; Meter will shows pressure.
• PP material with 30% glass fiber for providing good permeability and durability under different weather conditions.
• Place the diffuser into the tank and add sand inside, then install the valve and meter and secure the valve with clamp kits and screws; Comes with 2 different types of adaptors to connect rigid pipes & flexible hoses

Specifications:

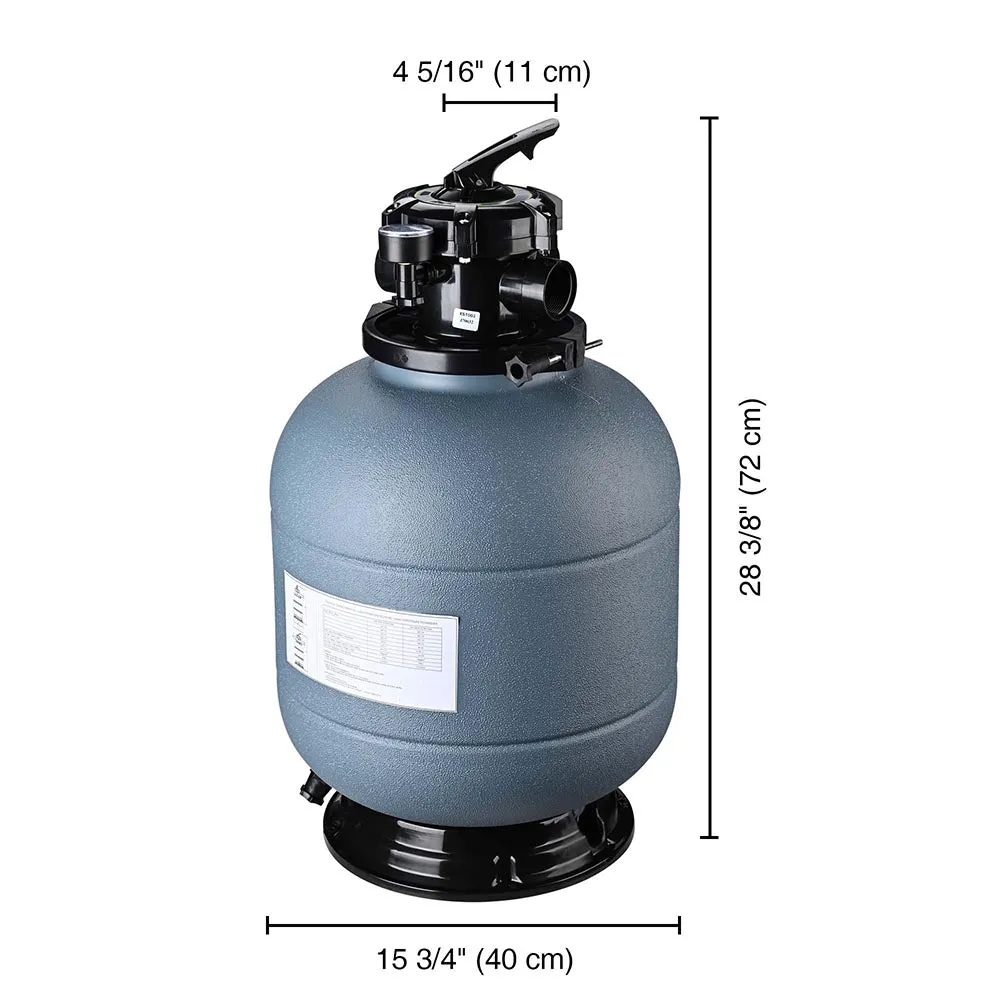

• Overall Dimension of Filter Tank(Dia.xH): 15 3/4" x 28 3/8"
• Top Valve Dimension(Dia.xH): 8 1/16" x 11 13/16"
• Fits Hose Dia.: 1 1/4", 1 1/2"
• Flow Rate: 35.2 GPM
• Max. Working Pressure: 22 PSI
• Applicable Pump Power: 0.35 to 1 HP
• Filter Sand Dia.: 0.4 to 0.8 mm
• Sand Capacity: 88 lbs.
• Filtration Area: 7925 Gallon
• Outer Material: PP 30% Glass Fiber
• Net Weight: 12 lbs.

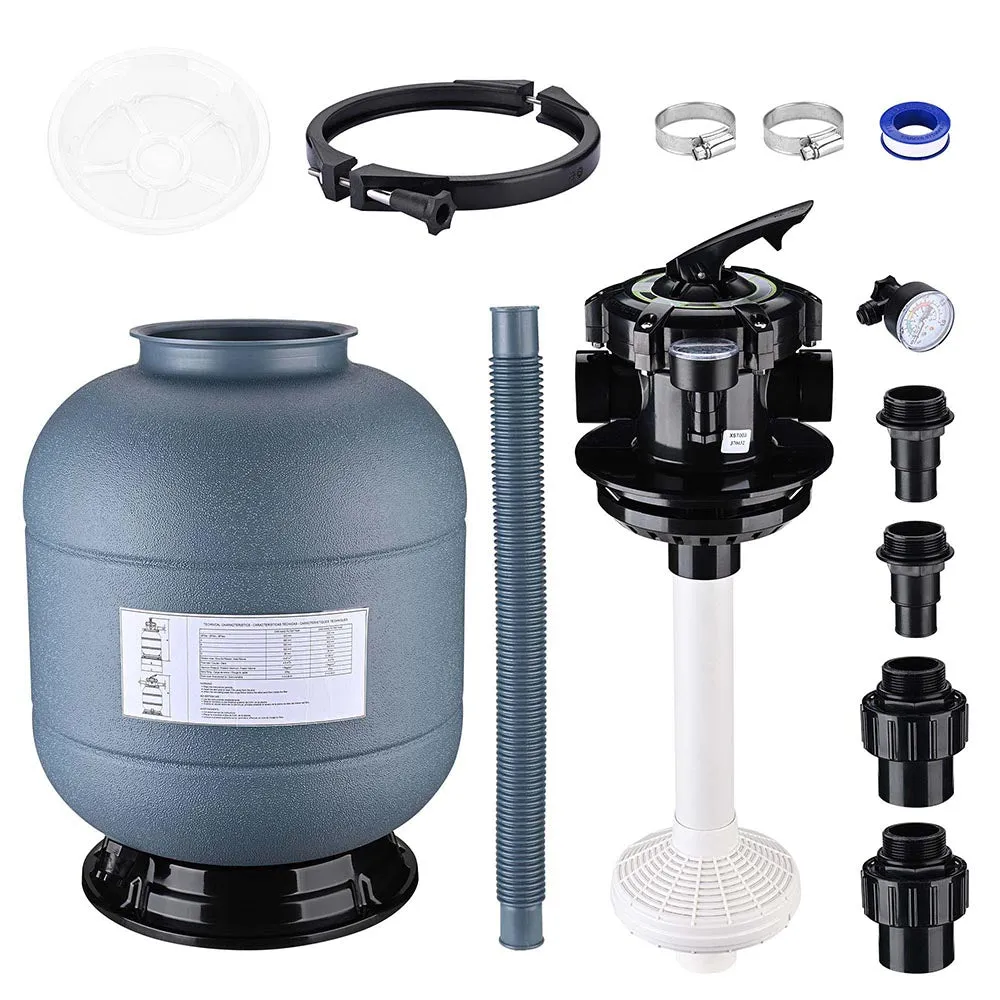

Package Includes:

• 1x Filter Tank
• 1x Base; 1x Hose; 2x Hose Clamps
• 1x Diffuser
• 1x Top Valve; 1x Top Cover
• 1x Meter; 1x Clamp Kit
• 1x Teflon Tape
• 2x Rigid Adaptors
• 2x Tube Adaptors

Notice: Please note that pump is NOT INCLUDED.
